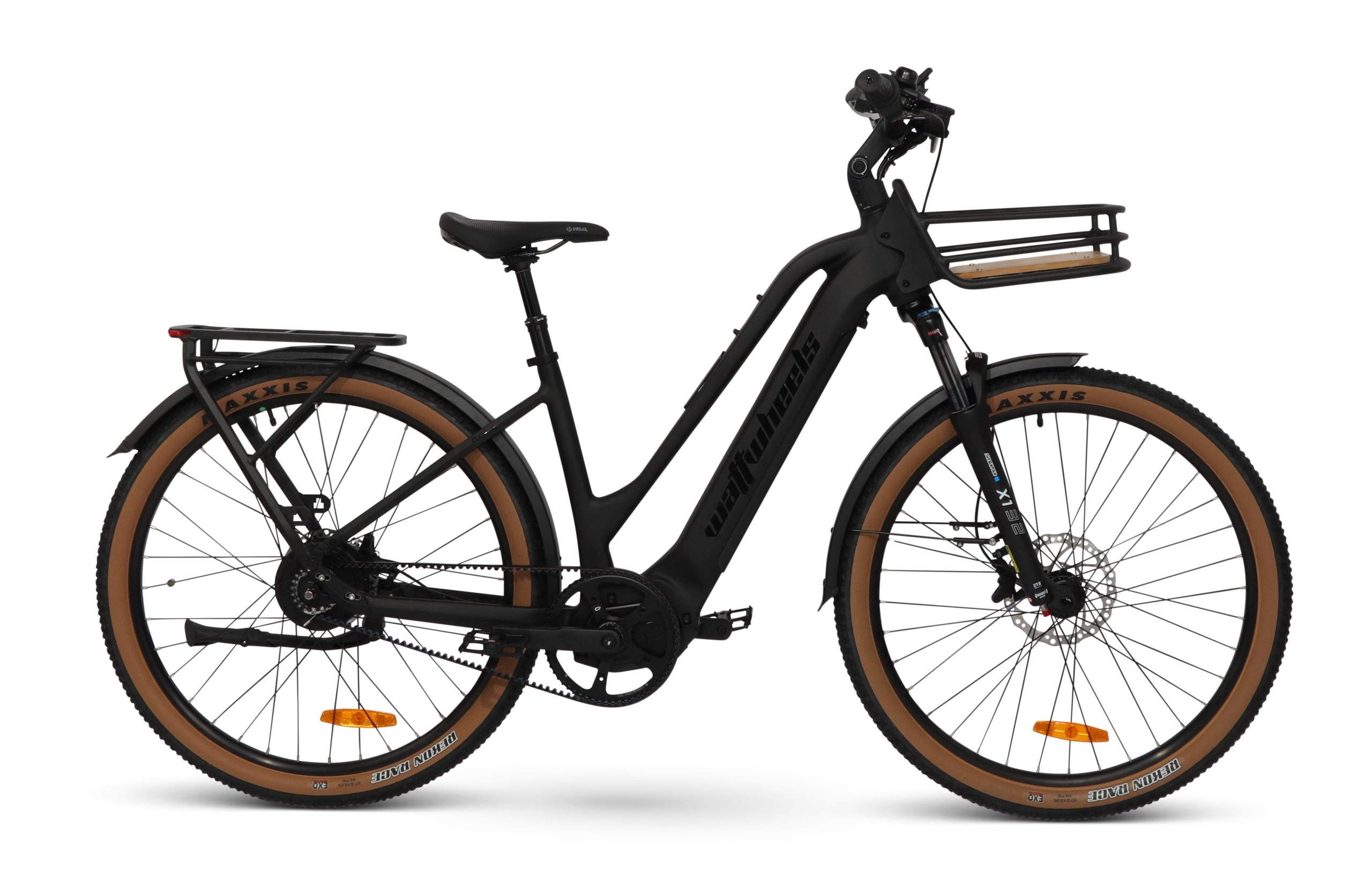

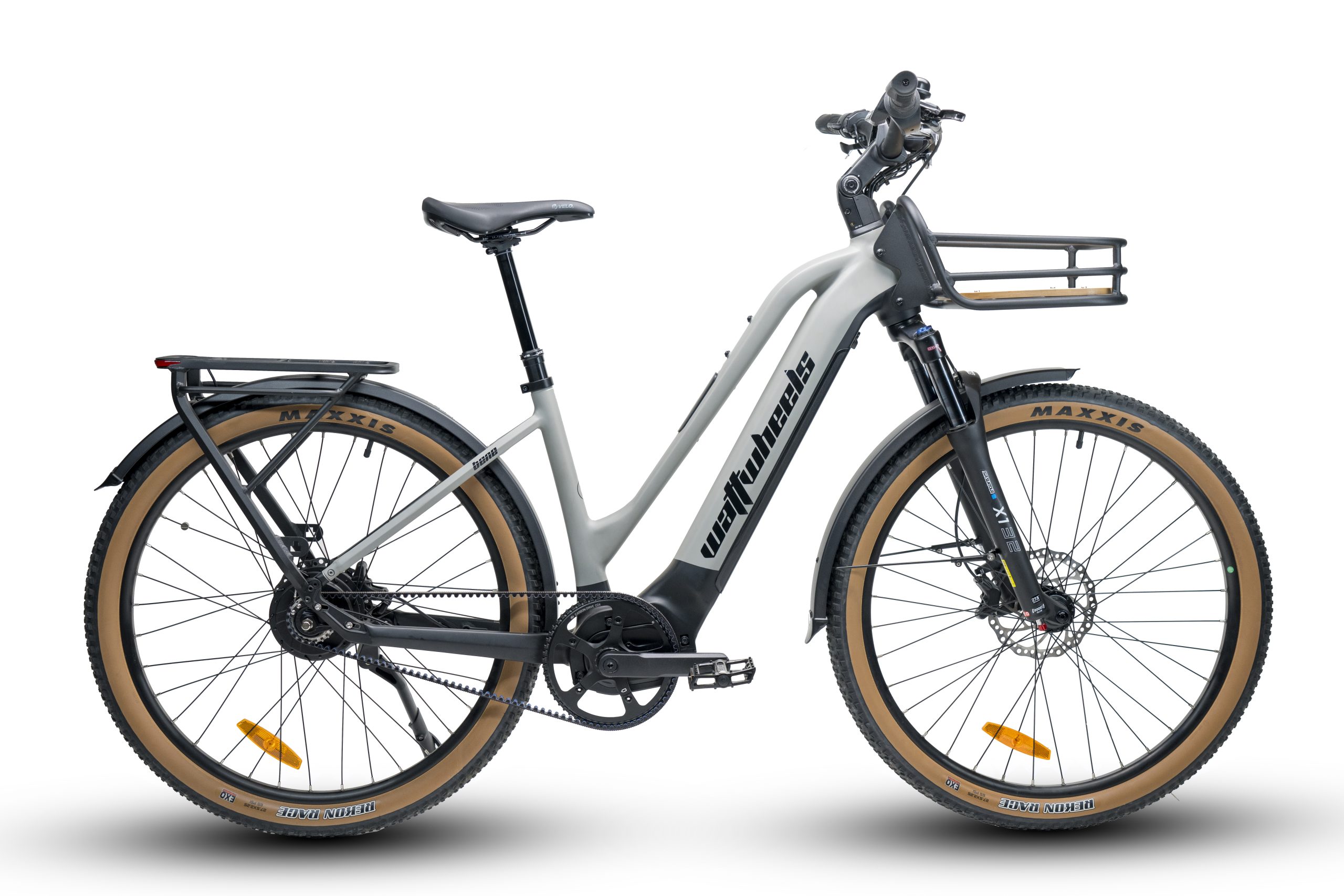

Wattwheels Bighorn


MOTOR: Dapu 48V 300Watt

BATTERY: 48V14Ah Samsung

Frame: 17″ & 19″ Alloy 6061

SKU: N/A Category:

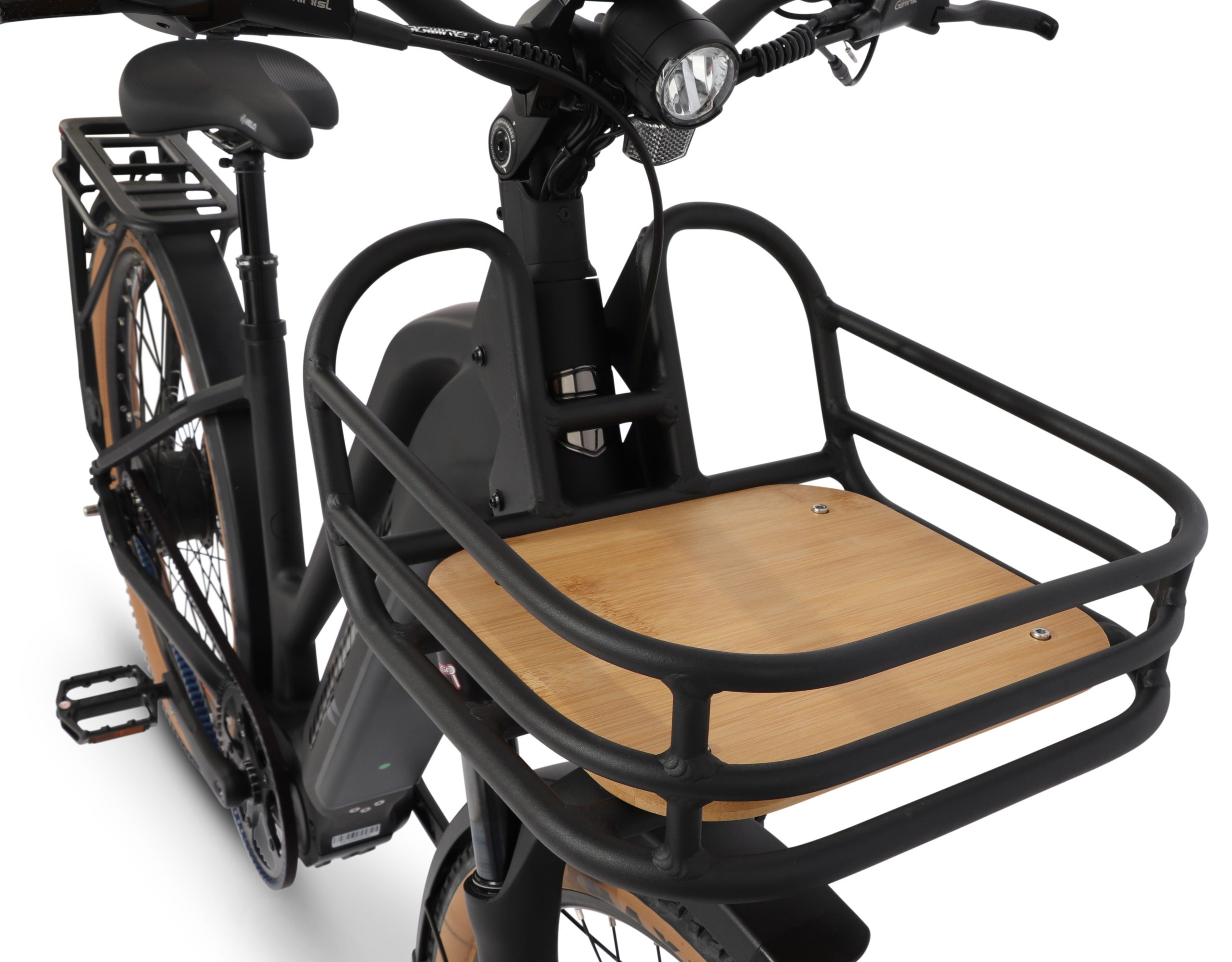

The new fully integrated 48v14Ah battery will give you up to 100km on pedal assist and the Shimano Deore gear-set makes for a smooth ride. Comes with a rear carrier, bottle holder and optional throttle this bike makes for a great universal option for around town or the trails.

Powered by the new Dapu mid-drive which can produce 90n.m of torque and has a throttle which can be activated from 0km/r

Options to fit road tyres

Sizing -17inch frame with a 27.5 wheel -19inch frame with a 29 wheel

MOTOR Dapu MD250 48V 300Watt (torque sensing)

BATTERY 48V14Ah 3500Mah Samsung Li-Ion (672WH) undermount

FRAME 17, 19 and 21″ Alloy 6061

SPEED Up to 40km/r

DISTANCE 35km Throttle only, 60-120+km Pedal Assist

BRAKES Shimano Hydraulic  MT200, 180mm Rotors

DERAILLEUR Shimano Deore 10 Speed & Shifter RD-M6000

CASSETTE 11-42T Shimano CS-HG500

SHIFTER Shimano Deore 10sp SL-M6000

CRANKSET Dapu 44T, 170mm


FRONT FORK Suntour XCM with Lockout – 100mm Travel

TYRES Maxxis Ikon (15 &17inch – 27.5*2.25) & (19inch – 29*2.25) Presta Valves

CHARGER Sans 48V3Ah Smart Charger

SEAT SR Gel Relaxed Unisex – Black

CHAIN KMC X10E EPT Anti Rust ebike Chain

SEAT POST 31.60 * 350mm  Alloy

HUBS Novatech with sealed bearing

RIMS – Alexrims 27.5 & 29 – 13G*32H

HANDLEBAR  – Promax 720mm, 31.8, 10mm Rise

GRIPS Velo 140mm Lock On

THROTTLE Thumb Left hand (optional)

NET WEIGHT 24.5kg (includes battery 4kg)

WARRANTY Full Comprehensive – 5 years frame, 2 years motor/battery/display and 12months rest
